Model Creation

Example Workflows

Artivact provides example workflows for the supported photogrammetry tools on the first start. Those can be used to quickly start model creation. They limit the size of the resulting 3D model and texture.

The sample workflows can be customized and saved in order to e.g. increase the model's texture size.

Export Settings

Export configuration in the provided workflows must not be changed, since Artivact expects the resulting model to be in the there configured place!

Details on the configuration can be found in the User Manual

Meshroom Pipeline

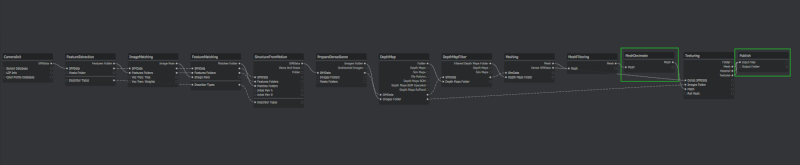

When Meshroom is started from within Artivact, it will open with a default pipeline which already includes mesh reduction and export nodes. If warnings about newer Node IDs appear, update the node's UUIDs using Meshroom.

Metashape Workflow

Agisoft Metashape's standard edition does not allow to open any workflow with when opening the program. The user has to open a batch processing workflow by hand.

A minimal workflow is provided by Artivact under the project root directory in:

utils/Metashape/artivact-metashape-workflow.xml

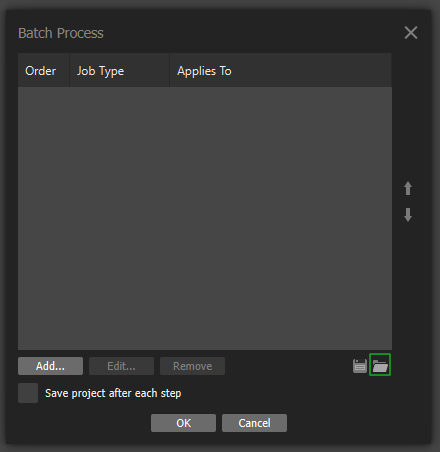

After adding the images, it can be opened with in Metashape with Workflow -> Batch Process by clicking the directory icon:

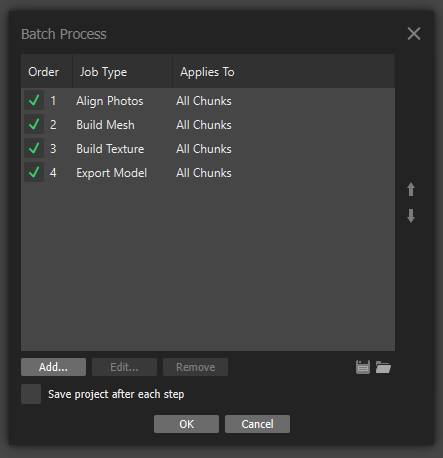

Then the following workflow will be executed by Metashape when clicking on OK:
