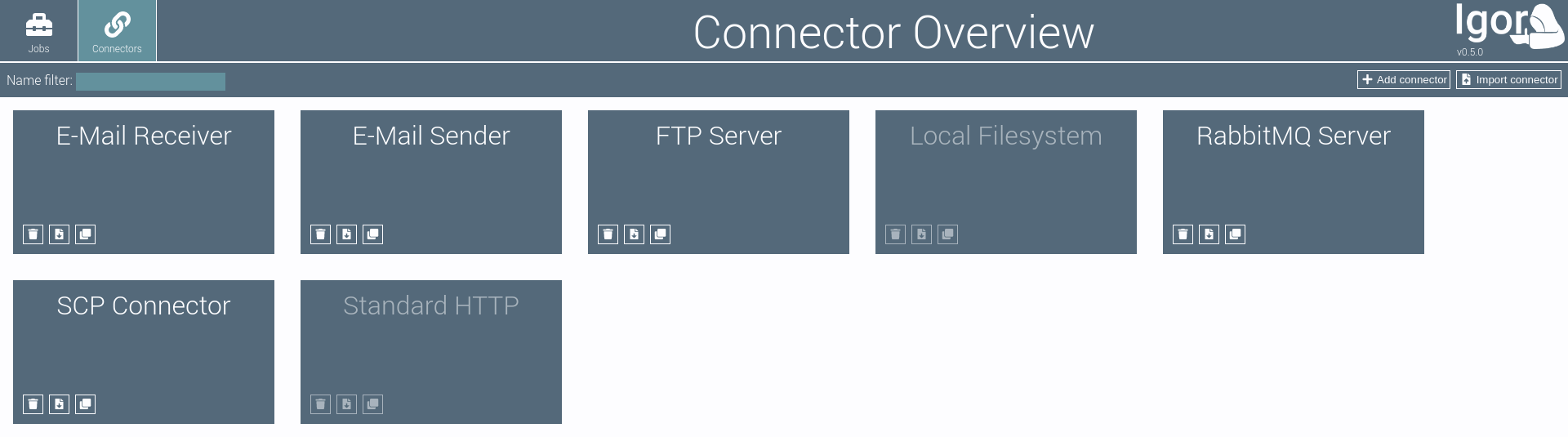

Connector Overview

The connector overview displays all configured connectors. Connectors can be managed here, e.g. created, duplicated or exported.

Action Bar

On top of the page is the overview's action bar.

On the left is a filter element:

The name filter can be used to filter the displayed connectors by their name.

On the right part of the action bar are buttons to perform the following actions:

Opens the connector editor to create a new connector.

Opens the dialog for importing connectors.

Connector Tiles

The main element of the connector overview are the connector tiles. Each connector is displayed in a separate tile. Clicking on the tile opens the connector editor for the corresponding connector.

The tile contains the following buttons to modify the connector:

Deletes the connector.

Exports the connector as JSON text file.

Opens the connector editor with a duplicated connector configuration.
